Göpfert SRE Maxi 2
PRODUCT INFO |
|
| MANUFACTURER | Göpfert |
| MODEL | SRE2 BS1/2800 |
| YEAR | 2005 |
| CONDITION | USED |
Specification
SRE Maxi 2 is able to run boards with 2800 mm width. All other machine values and board dimensions are equal to the SRE Maxi 2500mm.
The different to SRE Maxi 2500 and 2800 is drive of the slotting bar and cut off bar. The lifting of these bars will be done with servo motor not with hydraulic.
The machine third unit is equipped with additional flexo printing units with ink chamber system.
The print quality is good.
The print size max. at each printer is 400×800 mm .
Note: The cleaning the printers after a print job takes little more time than regular flexo printer,because the washing it not automatically, you have to do it manually
Description
max size 2800×10000 mm.
– min. size 360×1000 mm.
– Board thickness: 2.5 to 16 mm.
– Feeding lifting table: 2000 x 4000 mm. 2000kg. max.
– Conveyor for take off

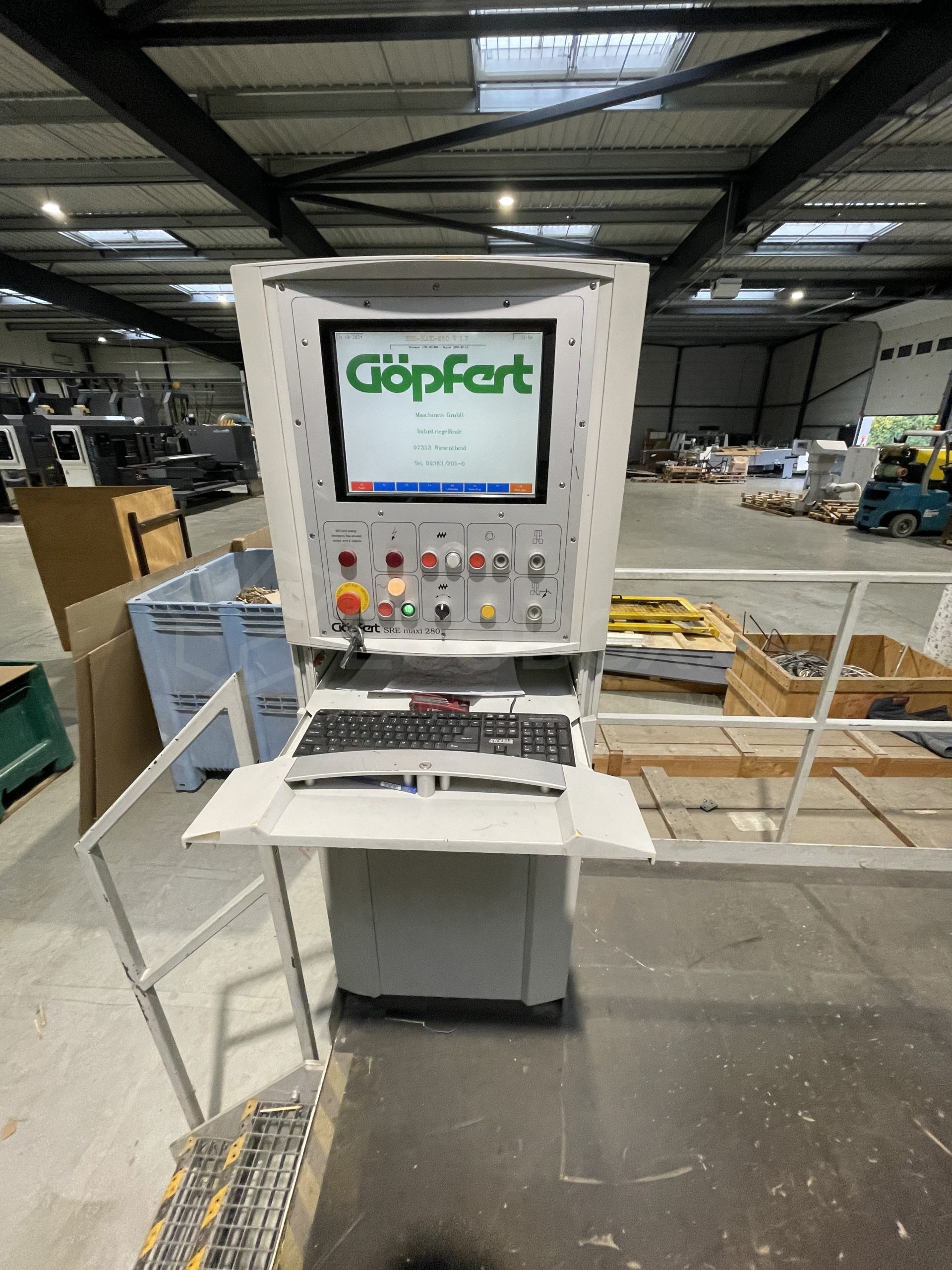

– Computer with job memory
– 2 printing units 400x800mm
– lenght-floor space of full line is appr 18m
Machine is still switched in production now. Location- Europe
